WR28 TO 2.92 MM FEMALE ADAPTER

WR28 TO 2.92 MM FEMALE ADAPTER
WR28 TO 2.92 MM FEMALE ADAPTER

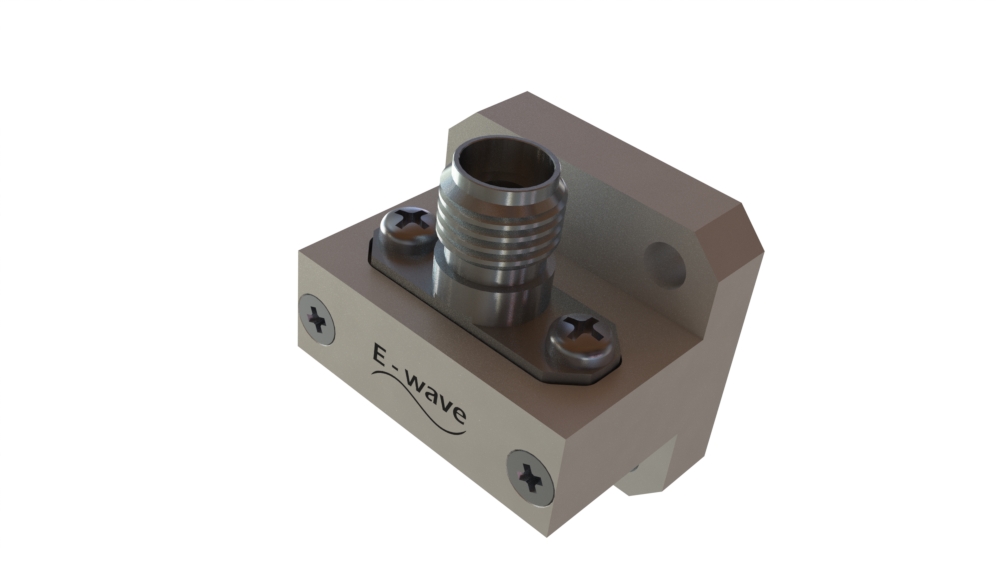

*Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Descriptions

WR28 TO 2.92 MM FEMALE ADAPTER

Specifications

Parameters Value
VSWR 1.5
Waveguide size WR28
Coaxial Connector 2.92mm Female
Lower Frequency, GHz 34
Upper Frequency, GHz 35

Download Datasheet

Request a Quote

You can request a quote for this product by filling out this form.

Please contact us for all available specifications and configurations.
