EWAVE - COUPLER 40 GHZ WR28

COUPLER 40 GHZ WR28

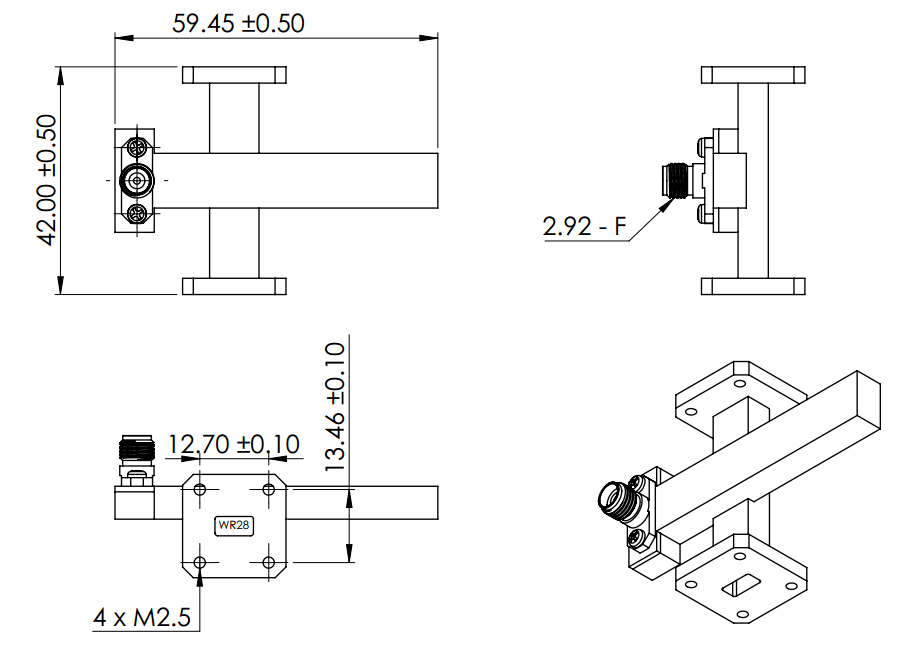

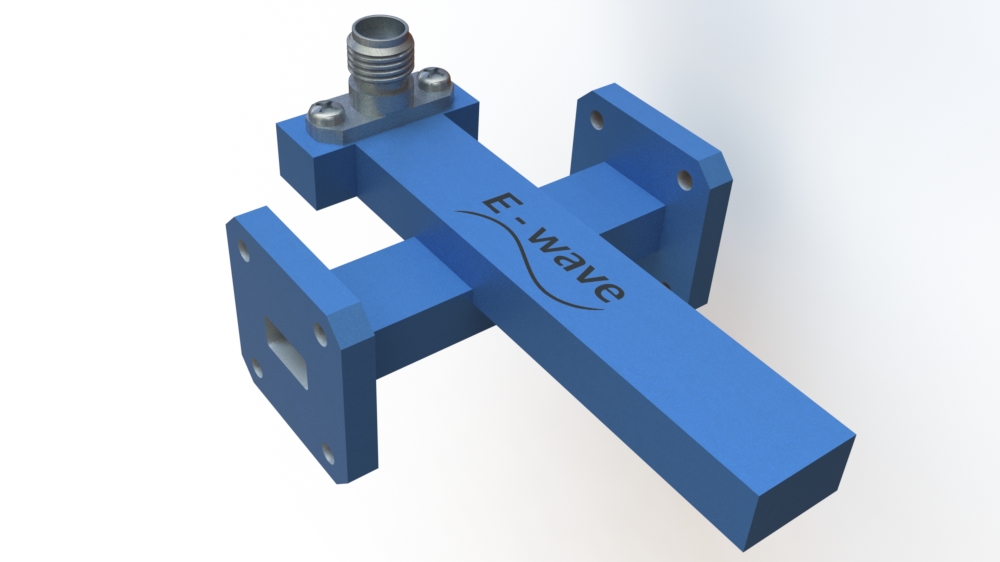

*Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

RF COUPLER 40 GHZ WR28

26.5 GHz to 40 GHz Frequency Range

• Three Port Crossguide Waveguide Coupler

• Integrated 2.92mm Female Connector for the

coupled port

• 40 dB Typical Coupling Level

• 200W (CW) Max Input Power

• WR28 Waveguide

• Temperature: -55÷100 𝐶

You can request a quote for this product by filling out this form.

Full Name*

Email Address*

Telephone Number*

Company Name

Subject*

Message

Please contact us for all available specifications and configurations.
